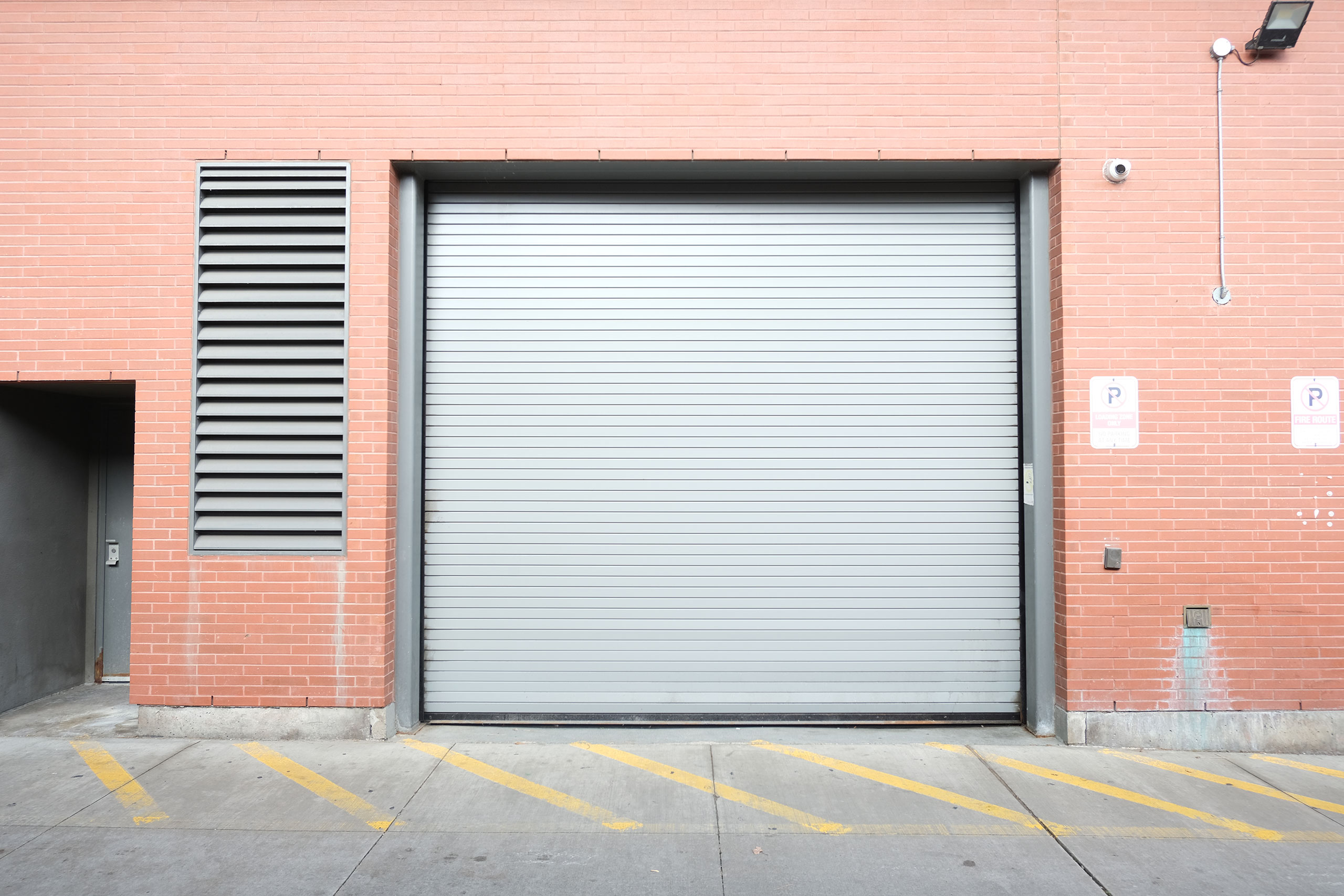

Rolling Steel Service Doors
Rolling Steel Doors are metal slatted doors that roll up to store in a coil above the opening. They are used to provide security against entry or weather protection at exterior and interior openings in industrial, commercial, institutional and other buildings.
Our rolling steel service doors are available as insulated or non-insulated doors.
Schematic Drawing SpecificationsNon-Insulated Rolling Service Doors
Sizes: 30′ wide, 30′ high, standard construction. Large openings, up to 50′ wide and 40′ high, are available.
Operation: Motors, chain, hand-crank or push-up designs based on size, weight or frequency of operation.
Usage:
- Standard construction for ≤ 20 cycles per day in low- to moderate-traffic areas.
- High-cycle construction for > 20 cycles daily, such as parking garages or sally ports.
- Fast-acting doors (up to 2 ft/s) for high-traffic openings or strict airflow/temperature control (more than twice the speed of typical doors).
Insulated Rolling Service Doors
Sizes: 30′ wide, 30′ high standard construction. Large Openings to 38′ wide, 40′ high.
Operation: Motors, chain, or hand-crank designs based on size, weight or frequency of operation.
Usage:
- Standard construction (≤ 20 cycles/day) for low-traffic openings.
- High-Cycle Construction (> 20 cycles/day) for high-traffic sites such as parking garages.
- Insulated Rolling Steel Doors are recommended for exterior openings where maintaining different temperatures on each side of the door is desirable.
Features and Benefits of Commercial Rolling Doors
Design Flexibility: Cornell coiling doors are custom-built to fit your specific opening size, operational preferences, and desired options.
Space-Saving: Coiling doors roll upward and store in a tight coil above the opening, allowing for fuller use of the interior space.
Low Life Cycle Cost: Cornell’s rugged construction and quality materials assure long life and less maintenance.
Strict Sizing: Each industrial rolling door is built to exact opening size requirements.
Powder-coated guides and bottom bar are standard.
Compact Storage: Curtain stores in an overhead coil that is totally supported by the side guides.
Durability: Commercial duty design.
Repairs: Job records are retained, and parts are readily available.
Available Options
- Corrosion-resistant ZRG galvanizing on exposed plain steel components
- Square hoods
- Cylinder or slide bolt locking
- Best 7-pin lock cylinders
- Bottom bar sensing edge for motorized units
- Double structural steel angle bottom bar
- Hot-dip galvanized steel bottom bar
- A range of materials and finishes
Rolling Steel Fire Doors
Coiling Fire Doors
Coiling Fire Doors are rated physical fire barriers that protect wall openings from the spread of fire. They provide automatic closing in the event of fire detection with governed speed control. Fire doors are also designed for daily use to provide security and access control. Begley offers a complete line of labelled rolling doors for protection in wall openings where rated doors are required by building codes and for insurance purposes.
Request A QuoteSizes: 30′ wide, 30′ high standard construction. Large Openings up to 50′ wide, 40′ high and up to 1200 square feet.
Mounting: Face of wall or between jambs configurations in both interior and exterior walls. Approved wall types for the mounting of fire doors include masonry or structural steel jambs.
M100 FireGard Closing Systems
- For any application where mechanical testing and resetting are impractical or not desired.
- Use where fire doors are installed within pedestrian thoroughfares.
- Use with fire-rated units in recessed applications.
- For units in areas susceptible to frequent power outages.
Features and Benefits
M100 Closing Systems offer the following benefits:
- Automatic resetting of the automatic closing system yields dramatic savings for building owners in testing and resetting costs as well as minimized opening downtime.
- M100 systems are directly wired for activation by fire alarm systems, local detectors or power failure without requiring connection to a separate alarm interface or a fusible link release device.
- Eliminate mechanical spring release and complicated resting and resetting, especially on recessed and larger doors.
- Safe, controlled, automatic closing speed will not exceed 12″ per second.
- Can be applied consistently on fire door, insulated fire door, counter fire door and SmokeShield® products.
- UL Certification allows Cornell to retrofit M100 motor, chain and crank operators to most manufacturers’ fire doors while maintaining the door’s listing agency ratings.
Get Your Rolling Steel Doors Installed Today
Offering installation services in Brampton, Mississauga, and the Greater Toronto Area, Begley Doors & Docks provides industrial and commercial rolling door solutions for a range of businesses. Contact our team today to discuss your options and request a quote.
